BELTANA
Steilfördergurte CHEVRON "VO/N 15" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Empfohlene
Mindest-Trommel-Æ |
|
|
|
Karkasse |
Ausnutzung der |
|
|
|
max. zulässigen Gurtzugkraft |
|
|
|
< 60 % |
60 - 100 % |
|
|
|
EP 250/2 |
200 mm |
250 mm |
|
|
|
EP 400/3 |
315 mm |
400 mm |
|
|
|
|
|
|
|
|
|
Lieferprogramm |
|
Lagerware in Standardqualität - Stand Januar 2003 |
|
|
|

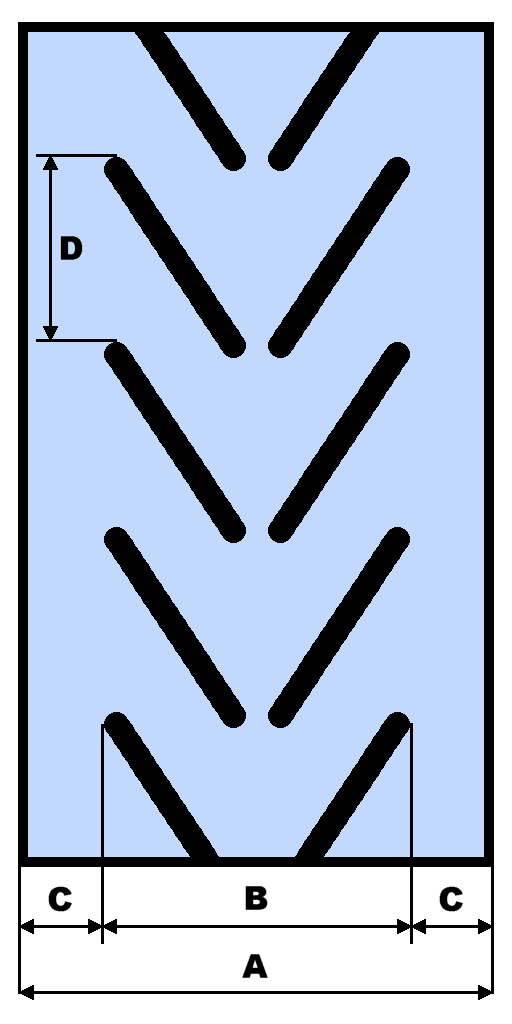

Profil |
|
Fördergurt |
|
Type |
Höhe |
Breite |
Rand |
Abstand |
|
Breite |
Karkasse |
Decke |
|
|
|
"B" |
"C" |
"D" |
|
"A" |
|
|
|
|
mm |
mm |
mm |
mm |
|
mm |
|
mm |
|
VO/N 15.385 |
15 |
385 |
58 |
250 |
|
500 |
EP 250/2 |
3:1,5 |
|
VO/N 15.385 |
15 |
385 |
58 |
250 |
|
500 |
EP 400/3 |
3:1,5 |
|
VO/N 15.385 |
15 |
385 |
108 |
250 |
|
600 |
EP 250/2 |
3:1,5 |
|
VO/N 15.385 |
15 |
385 |
108 |
250 |
|
600 |
EP 400/3 |
3:1,5 |
|
VO/N 15.385 |
15 |
385 |
133 |
250 |
|
650 |
EP 250/2 |
3:1,5 |
|
VO/N 15.385 |
15 |
385 |
133 |
250 |
|
650 |
EP 400/3 |
3:1,5 |
|
VO/N 15.610 |
15 |
610 |
95 |
250 |
|
800 |
EP 250/2 |
3:1,5 |
|
VO/N 15.610 |
15 |
610 |
95 |
250 |
|
800 |
EP 400/3 |
3:1,5 |
|
VO/N 15.750 |
15 |
750 |
25 |
250 |
|
800 |
EP 400/3 |
3:1,5 |
|
VO/N 15.750 |
15 |
750 |
125 |
250 |
|
1000 |
EP 400/3 |
3:1,5 |
|
|
|
|
|
|
|
|
|
|
|
|
Alle Maßangaben sind als ca.-Werte zu verstehen. Technische
Änderungen vorbehalten. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
